Guide I

Coffered, tray or beams? Reading the three big ceiling patterns

By the Editors · October 15, 2026

All three change how a ceiling reads, but they do it in different ways. This page compares the layouts; the finish and color come later.

PatternWhat it isOften suits
CofferedA grid of beams forming recessed panels, sometimes with crown inside each panelFormal living and dining rooms, studies
TrayA raised center field above a lower perimeter, stepped once or moreDining rooms, primary bedrooms
Beam patternBeams running one way or crossing, without fully recessed panelsGreat rooms and open plans

Height first: what the numbers say

Before choosing a pattern, know your height. The model International Residential Code (2021 IRC, Section R305.1) sets a minimum ceiling height of 7 feet for habitable space and hallways and 6 feet 8 inches for bathrooms, toilet rooms and laundry rooms, measured to the lowest projection. Florida homes are built under the Florida Building Code, Residential, so confirm the local rule, but the point stands: a beam that hangs down counts. (Source: International Code Council, IRC R305.1, as reproduced by the City of Boise.)

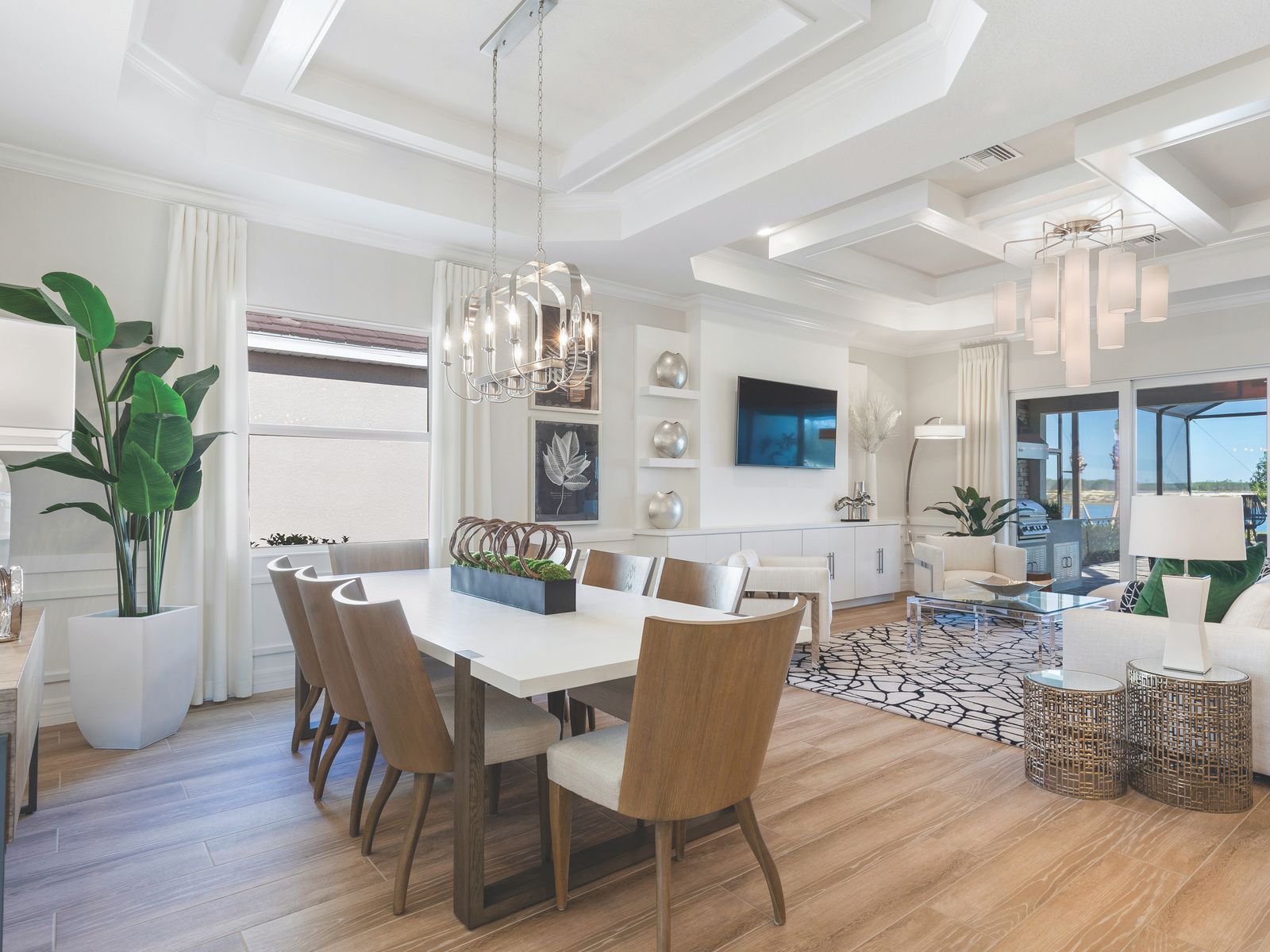

Bright dining and living room with a white coffered tray ceiling, crown molding and a lantern chandelier
Coffered tray ceiling over a dining and living area. Trim My Crib job.
Space (2021 IRC R305.1)Minimum ceiling height
Habitable rooms and hallways7 ft
Bathrooms, toilet rooms, laundry rooms6 ft 8 in
Sloped ceilings7 ft over at least 50% of required floor area; none of that area under 5 ft

Florida adds a beam-specific rule. The Florida Building Code, Residential, 8th Edition (2023), Section R305.1, has a new exception: beams and girders spaced at least 36 inches (914 mm) apart in clear finished width may project down to no lower than 78 inches (1981 mm) above the finished floor. (Source: Florida Building Commission, Analysis of Changes for the 8th Edition (2023) Florida Building Code, Residential.)

Taller rooms are what buyers ask for. In NAHB surveys, 54% of buyers wanted first-floor ceilings higher than eight feet in 2003; by 2018, 67% were willing to pay extra for them and only 32% preferred eight-foot ceilings. (Source: National Association of Home Builders, Trends in Home Buyer Preferences, 2018.)

Coffered

Coffers began as structure: sunken panels in ancient Roman and Greek buildings, the Pantheon dome being the famous example. Today they are usually built from hollow box beams fixed to the existing framing, with painted fields or a contrasting color inside each panel.

Tray

A tray lifts the center of the ceiling and leaves a soffit around the edge. The ledge is a natural place for cove lighting, and the raised field can take a different paint color or a wallcovering.

Beam patterns

Parallel beams stretch a room in one direction. Crossed beams create a grid without deep panels, and radiating beams can meet at a chandelier inside a tray. Painted beams, white on white or white on a colored field, keep the look light.

Proportion

Beam depth and spacing should suit the ceiling height and the room's width; deep beams on a low ceiling feel heavy. Line the grid up with the room's anchors, such as a window wall, fan or chandelier, and plan around vents, sprinkler heads and recessed lights.

Prefer the warmth of stained wood beams over paint? That is a wood question, and the guide to wood ceiling finishes covers stain choices. For coffered and tray work in local homes, see Trim My Crib’s coffered and tray ceilings.

Sources
